The ADU project is for a couple that are both artists and working at home.  We had to keep 40% of the existing garage and transform in an ADU (Accessory Dwelling Unit). The façade of the 60% is designed by the wallpaper that was inspired by a stone wall in Cusco, Peru. The ADU is separated in two parts, the first floor for the living area and the second floor for the working area.
Instructor: Louis Molina
Software: Rhinoceros, Grasshopper, Adobe Illustrator, Adobe Photoshop
Wallpaper
Wallpaper

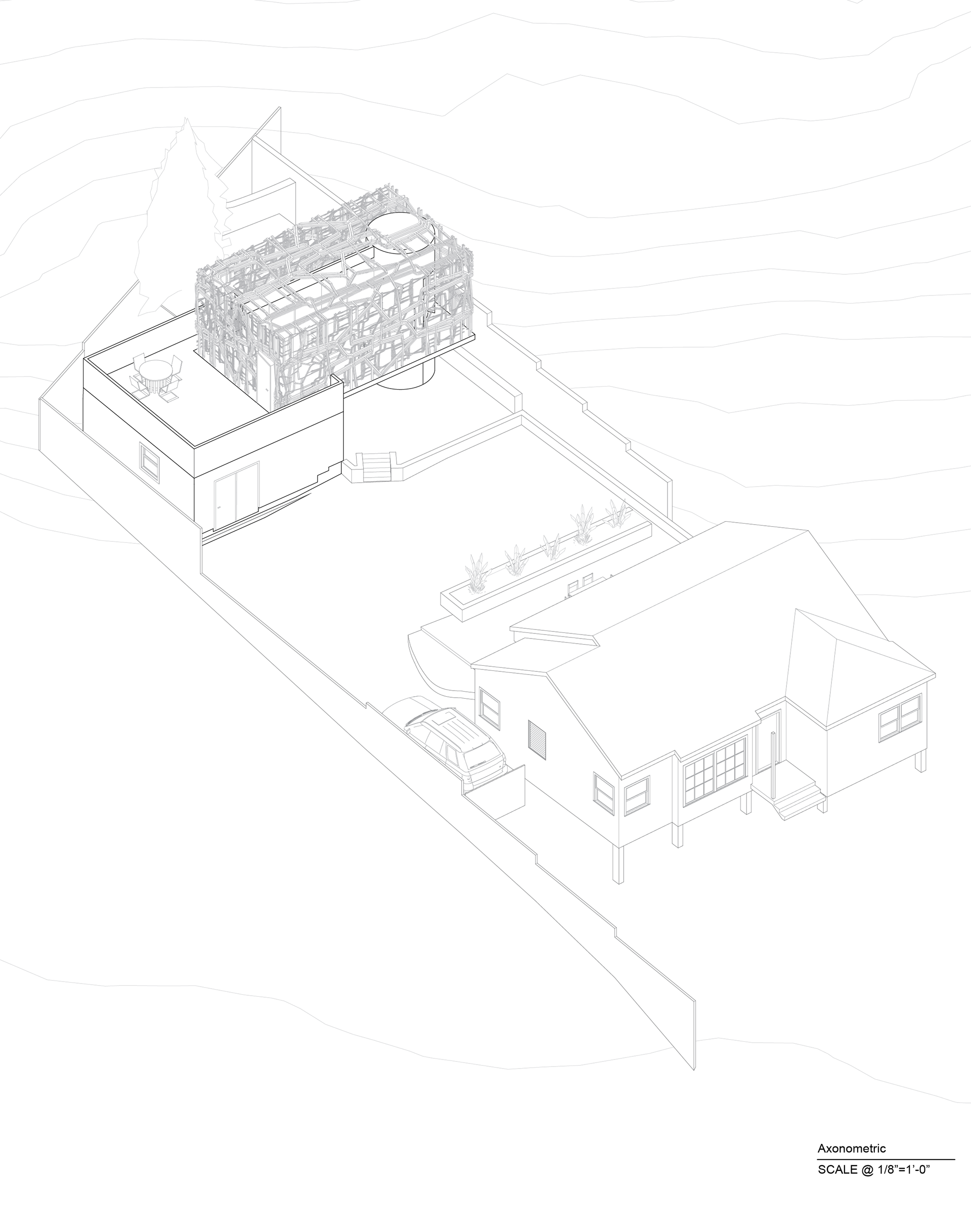

Axonometric
Axonometric

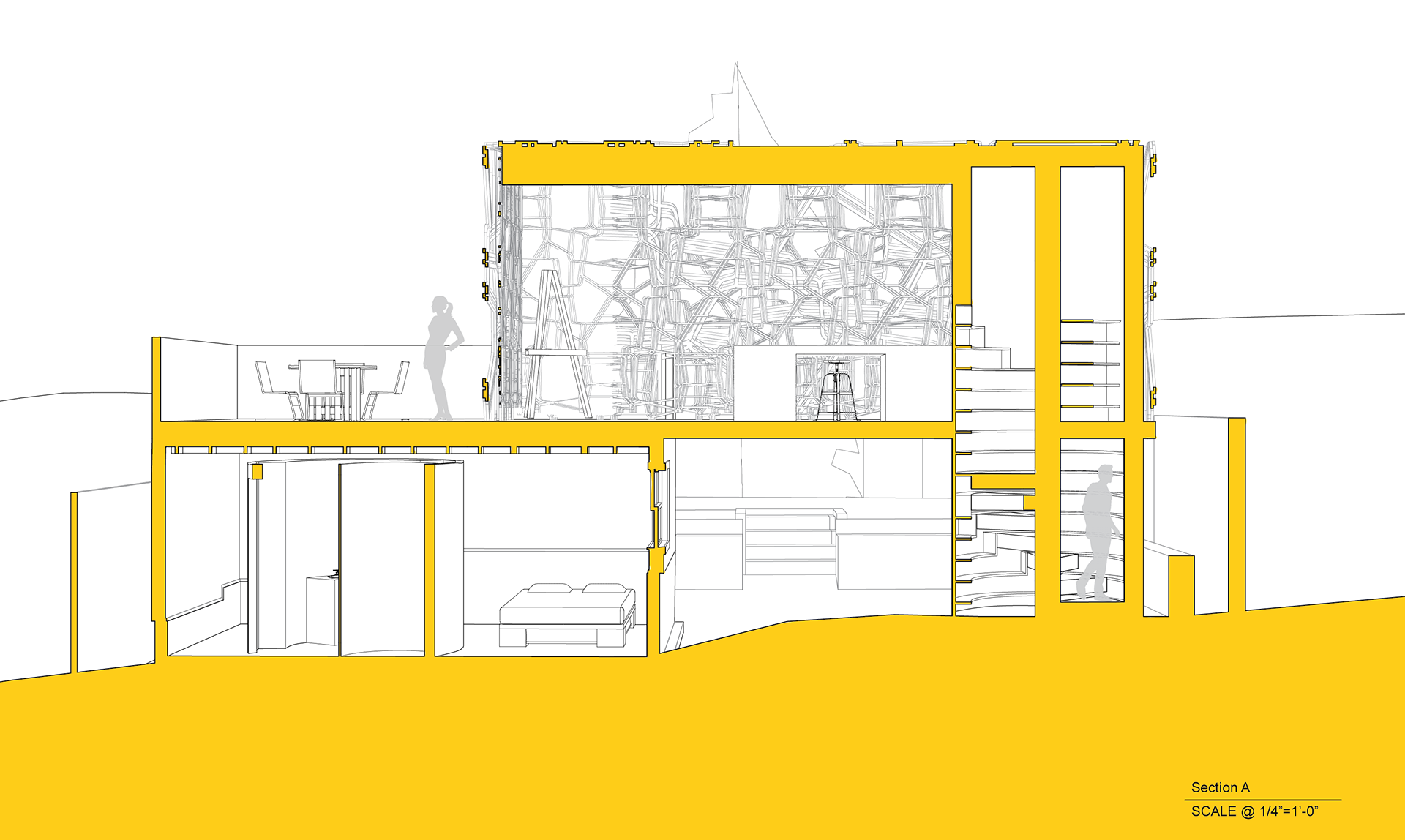

Section A
Section A

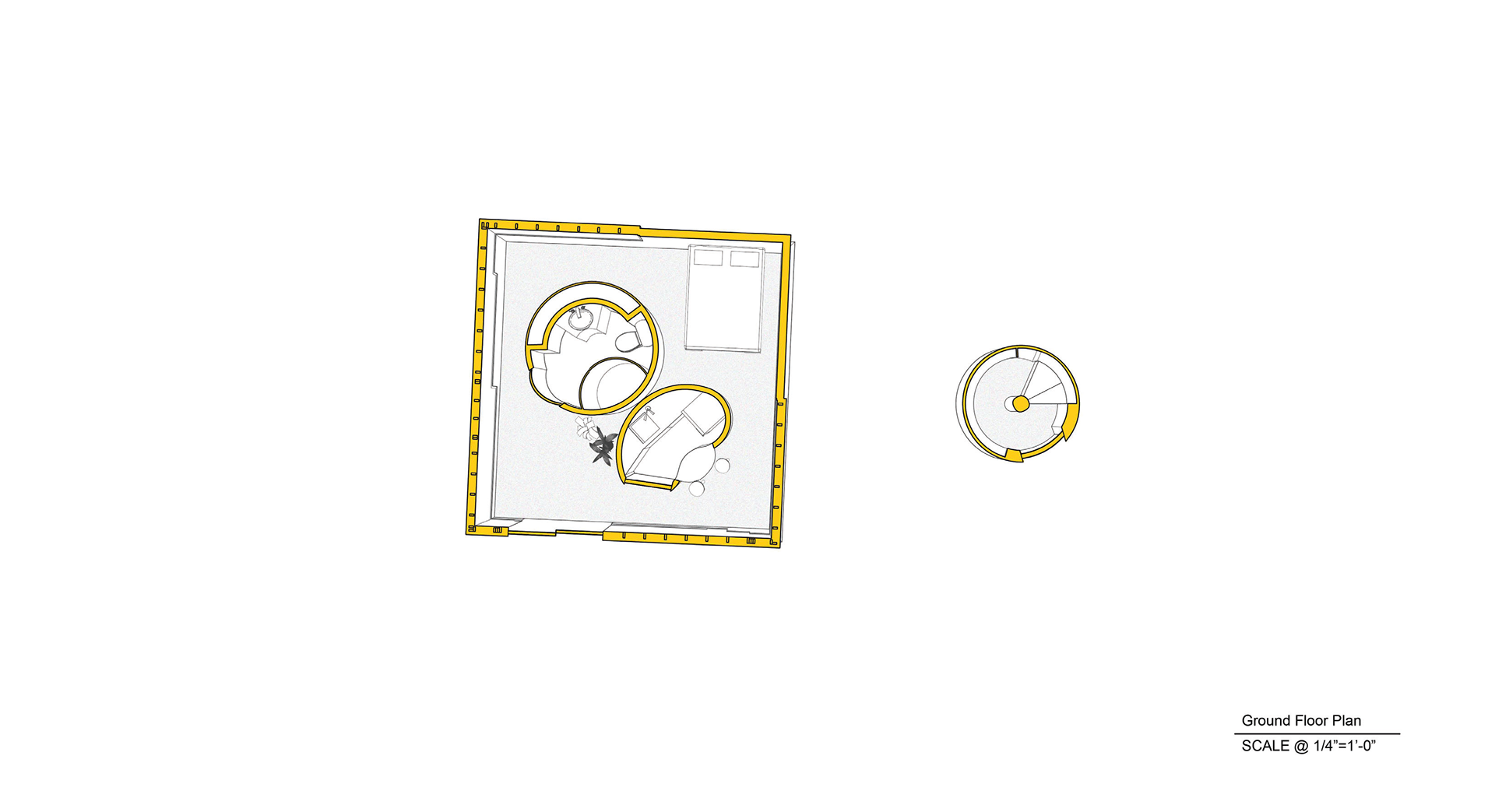

Ground Floor Plan
Ground Floor Plan

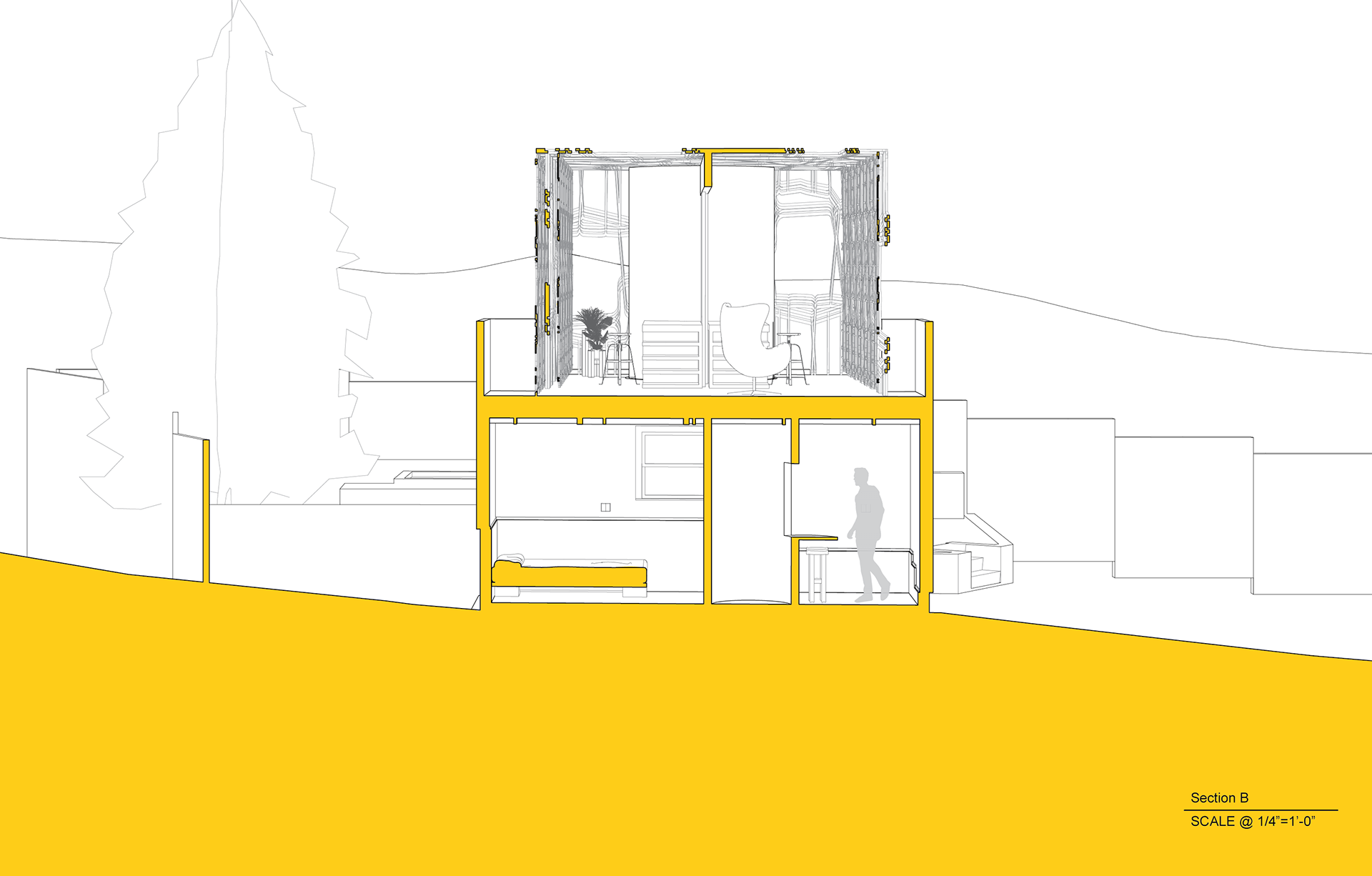

Section B
Section B
1st Floor Plan
1st Floor Plan

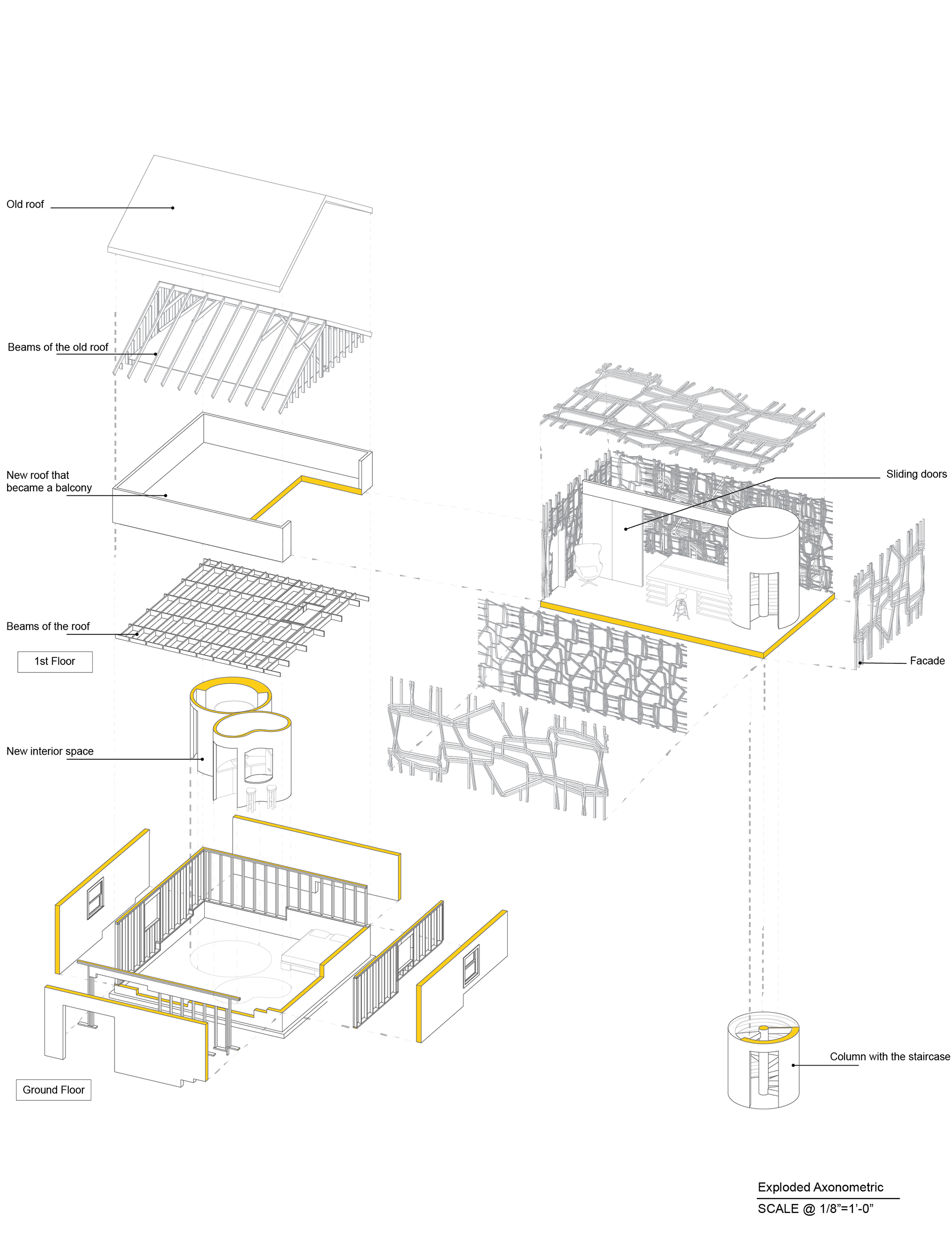

Exploded Axonometric
Exploded Axonometric

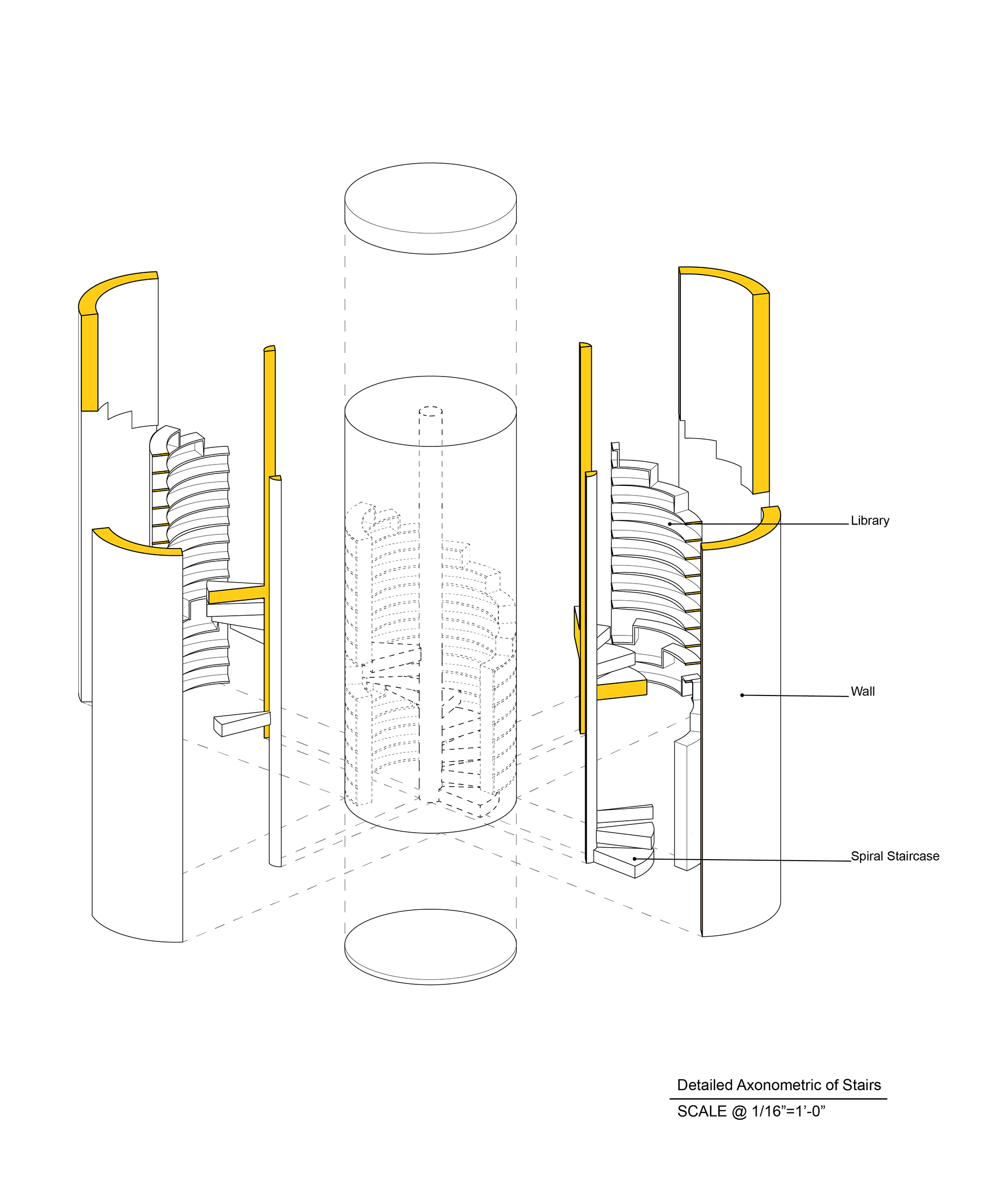

Detailed Axonometric of Stairs
Detailed Axonometric of Stairs
