Spring 2019, was to design a market place in Hollywood. The market place was design from bars that were built by using different materials such as museum board, plaster and acrylic. Also, by using different machines such as the laser cutter, 3D printing and the CNC Router.
Instructor: Teddy Slowik
Software: Rhinoceros, Adobe Illustrator
Experimental Models

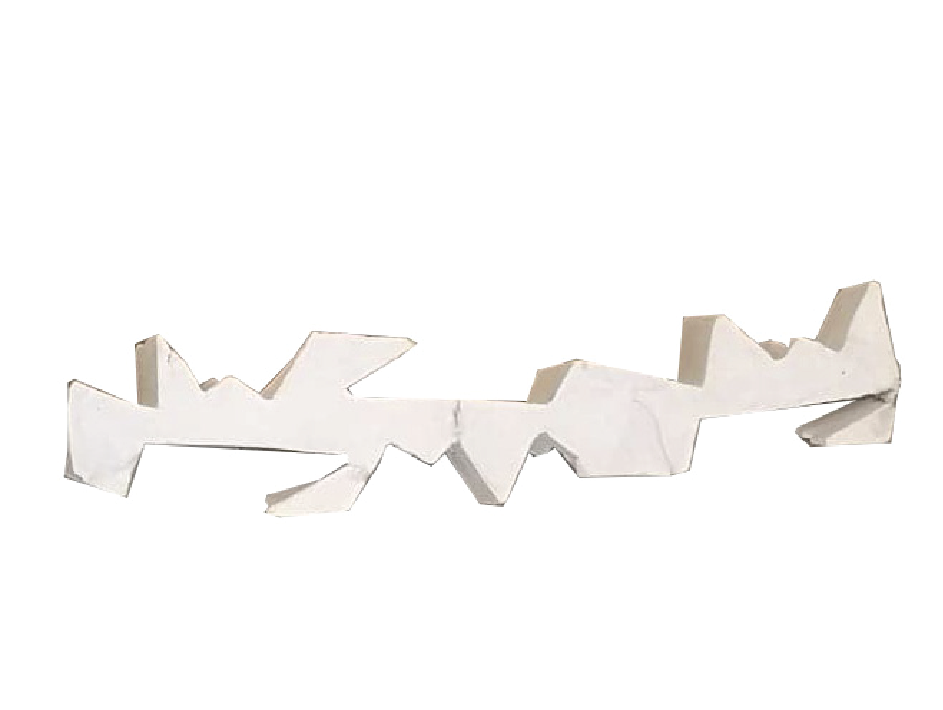

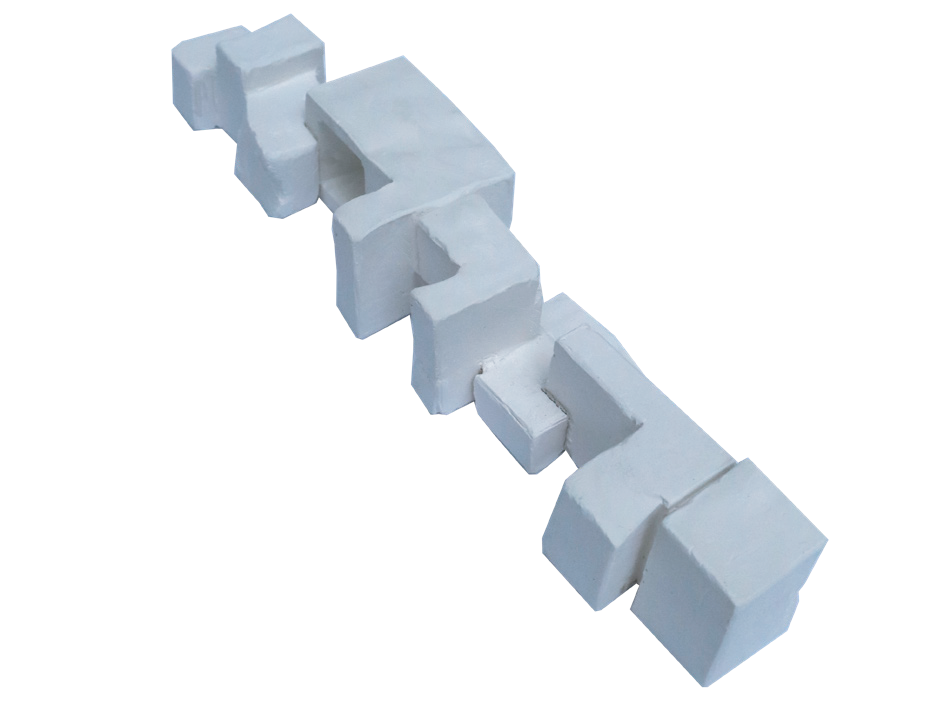

Experimental Model Made with Plaster One

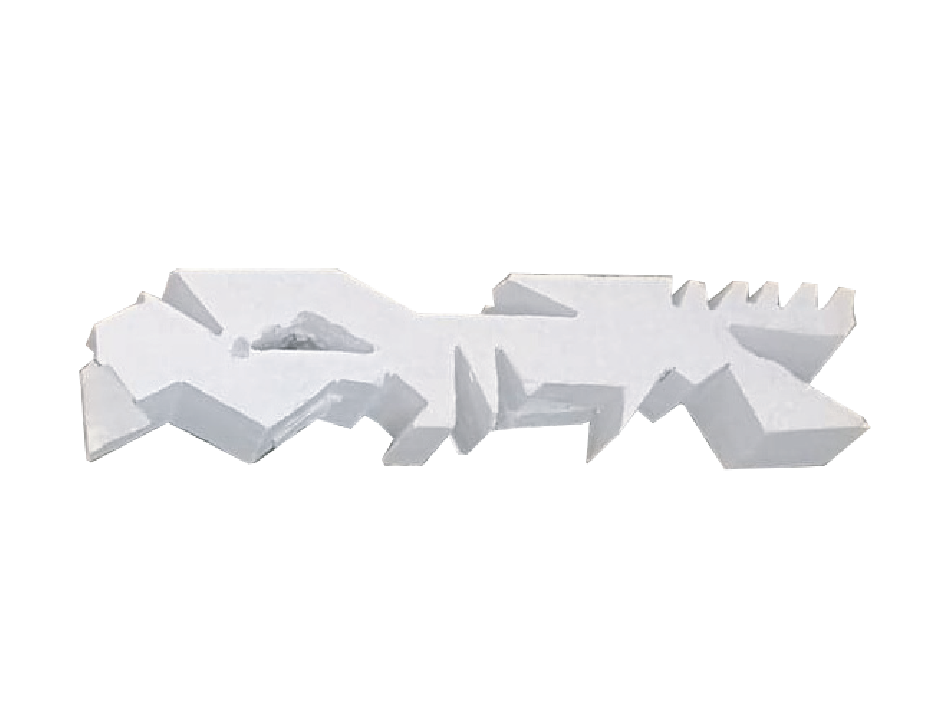

Experimental Model Made with Plaster Two
Experimental Model Made with Plaster Three

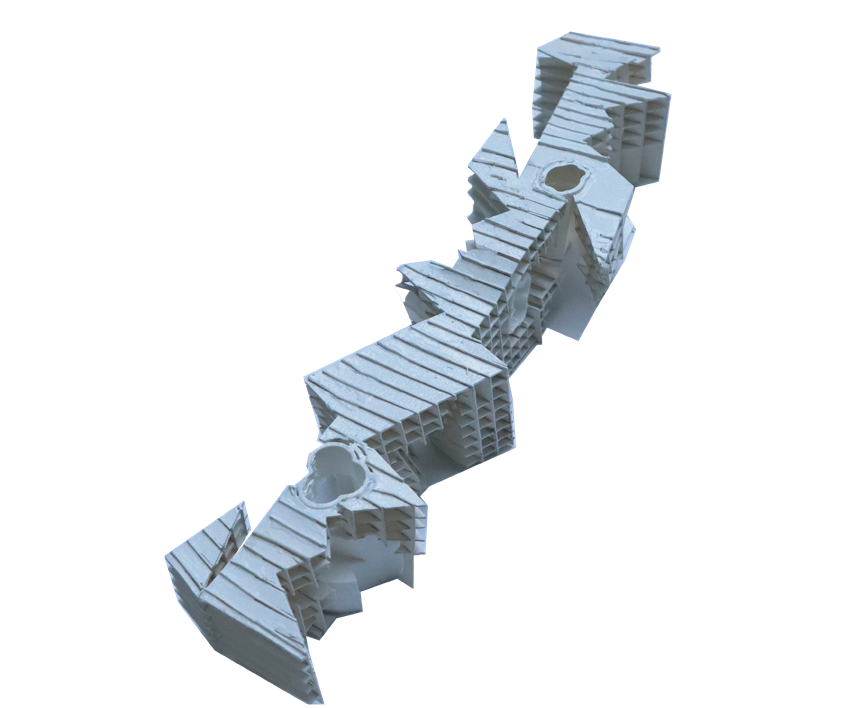

Experimental Waffle Model Made with Museum Board by Using the Laser Cutter 3D Printed Pieces

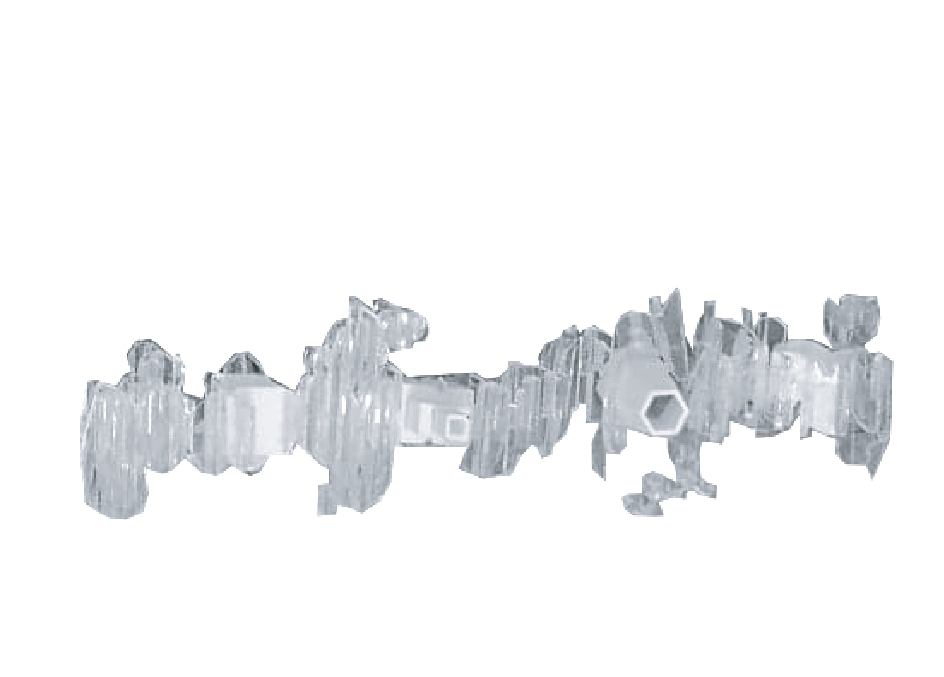

Experimental Waffle Model Made with Acrylic by Using the Laser Cutter and 3D Printed Pieces
Final Model
Aerial View

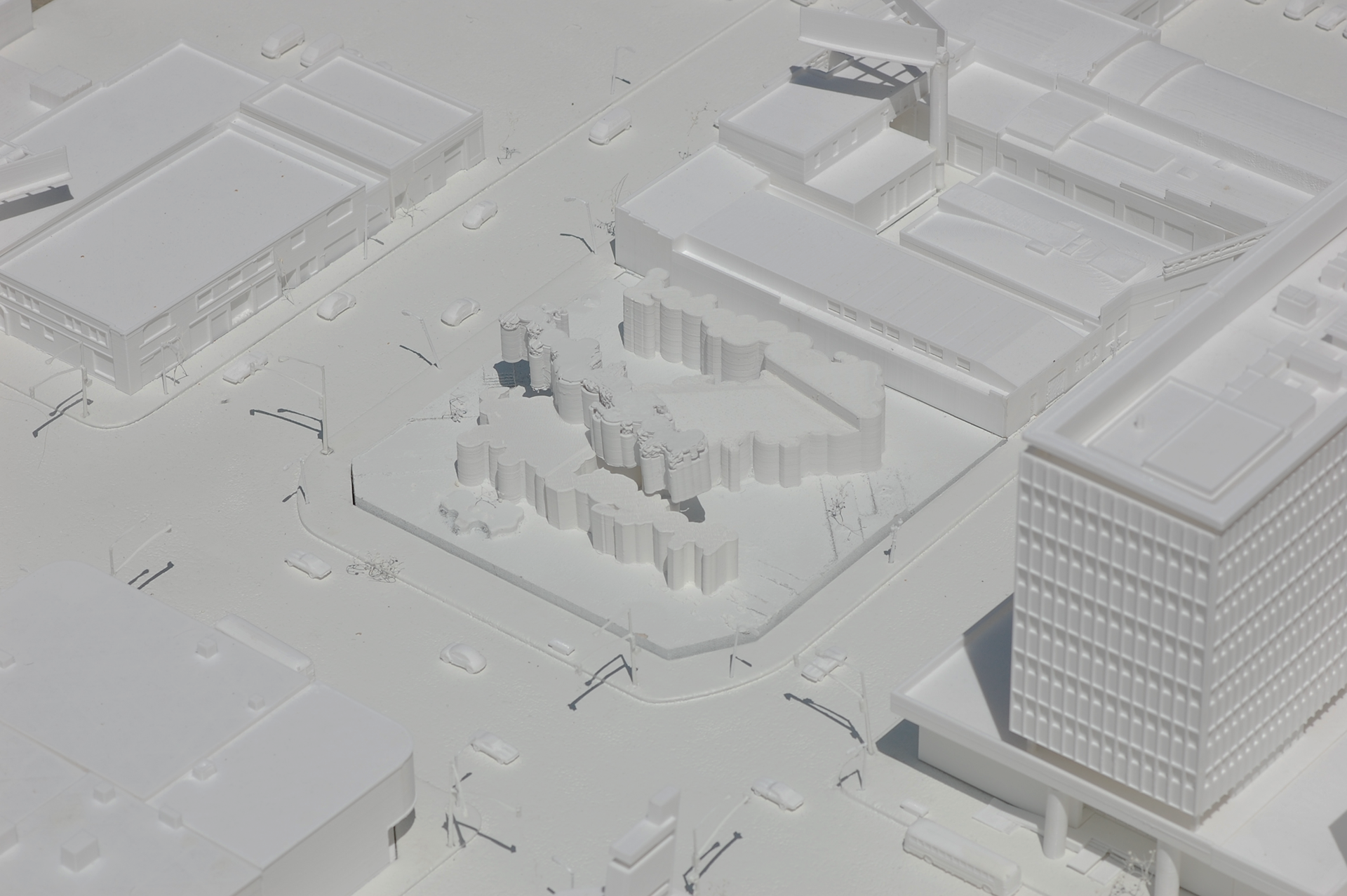

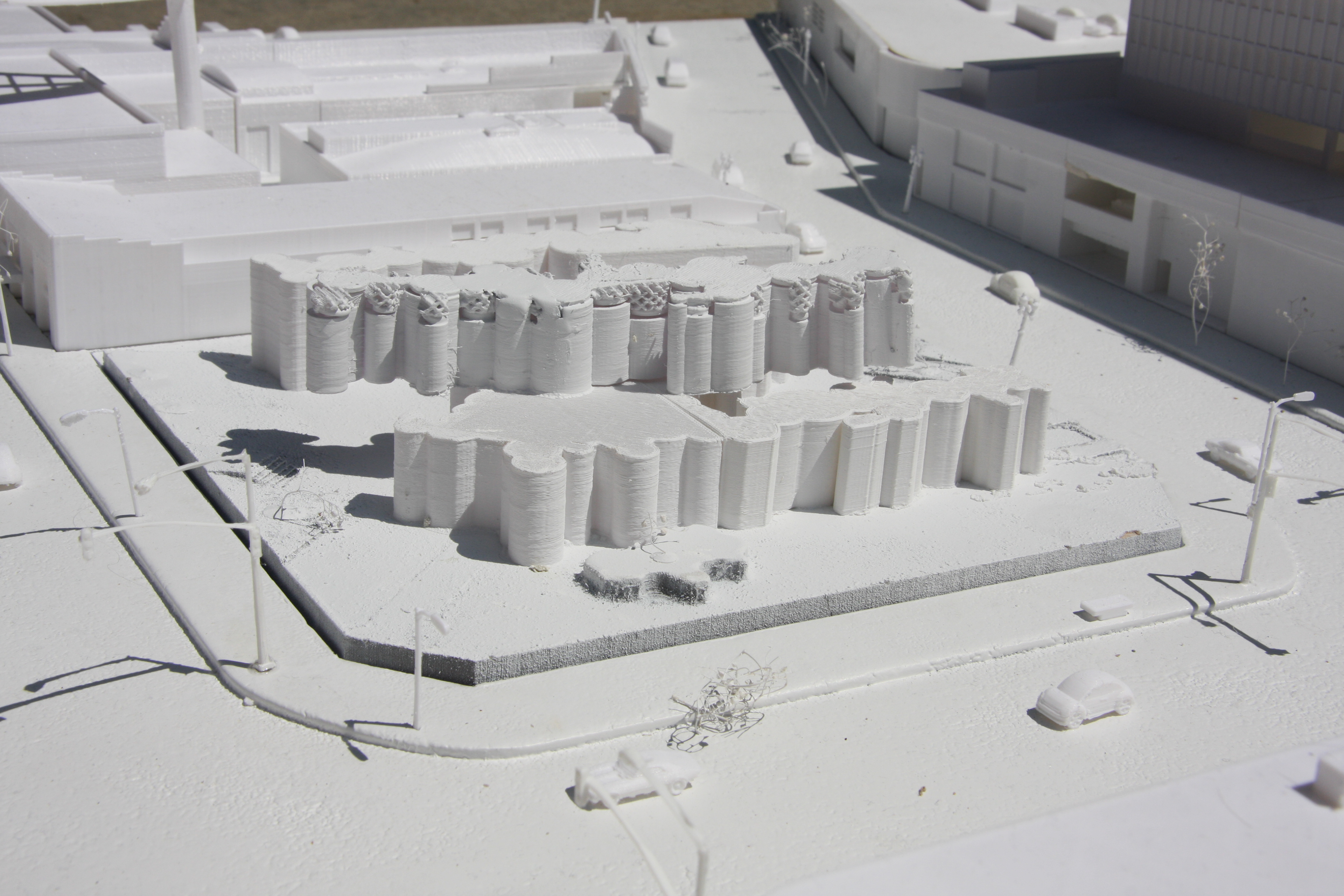

Physical Model

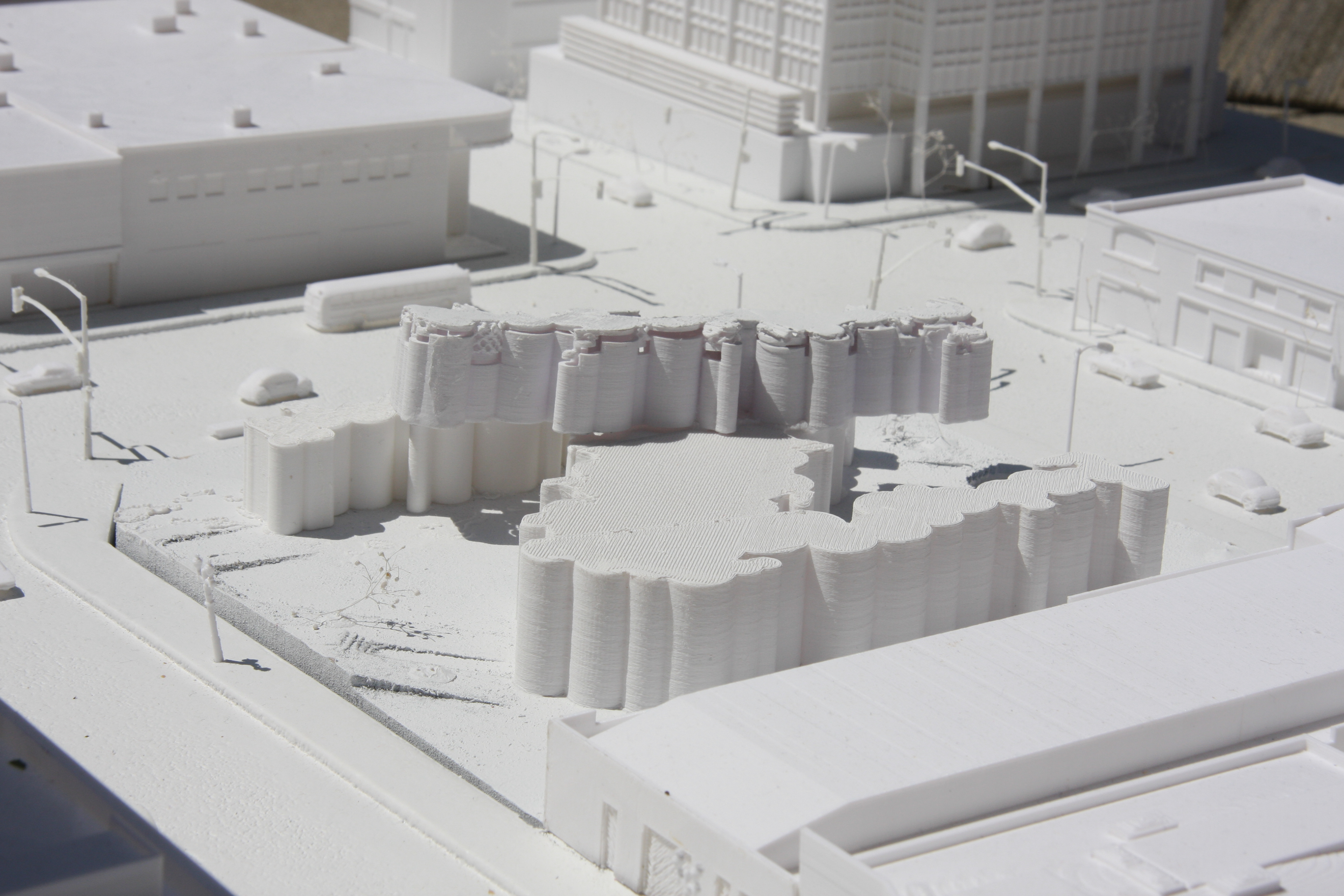

Physical Model

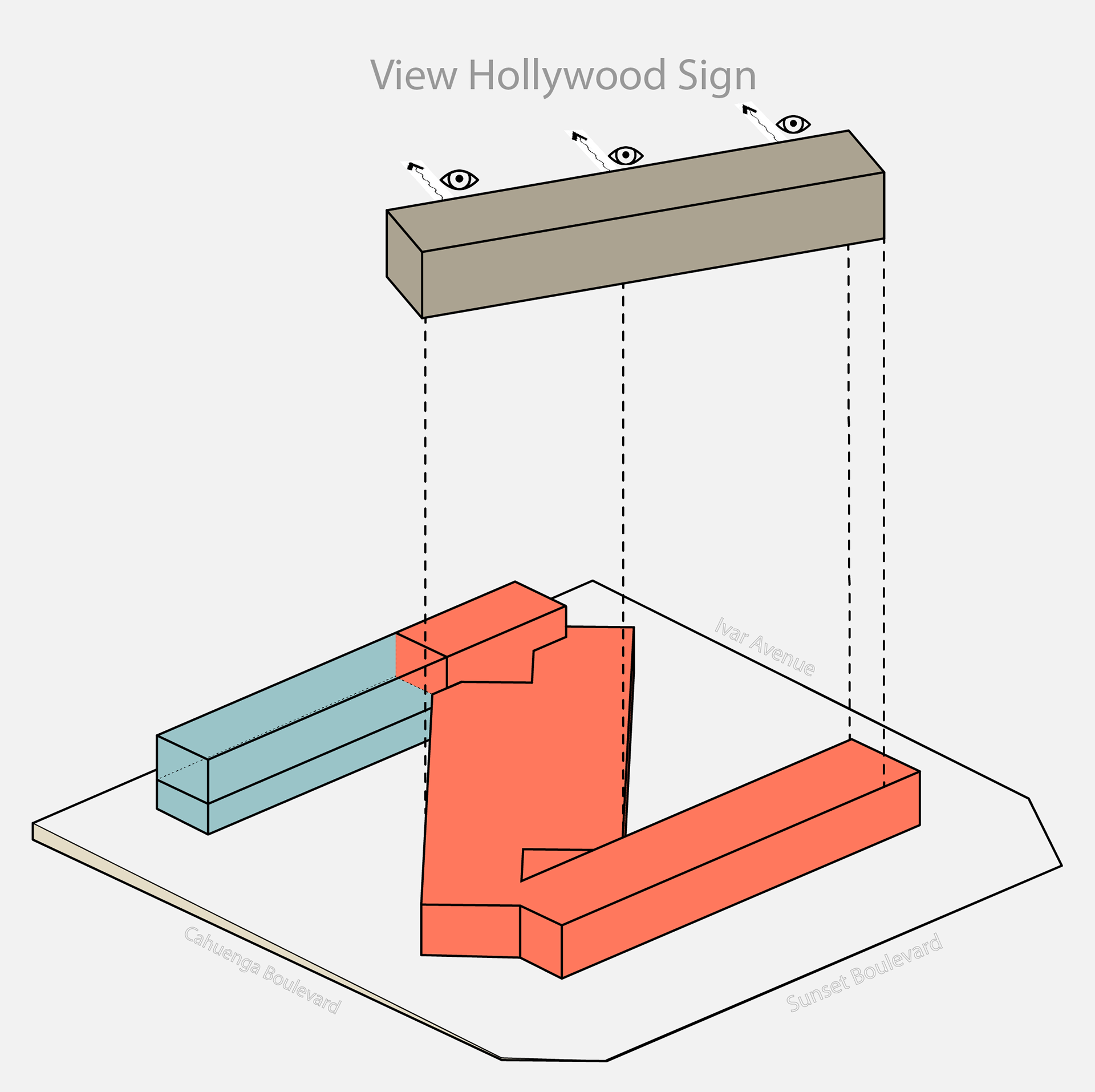

Conceptual Diagram

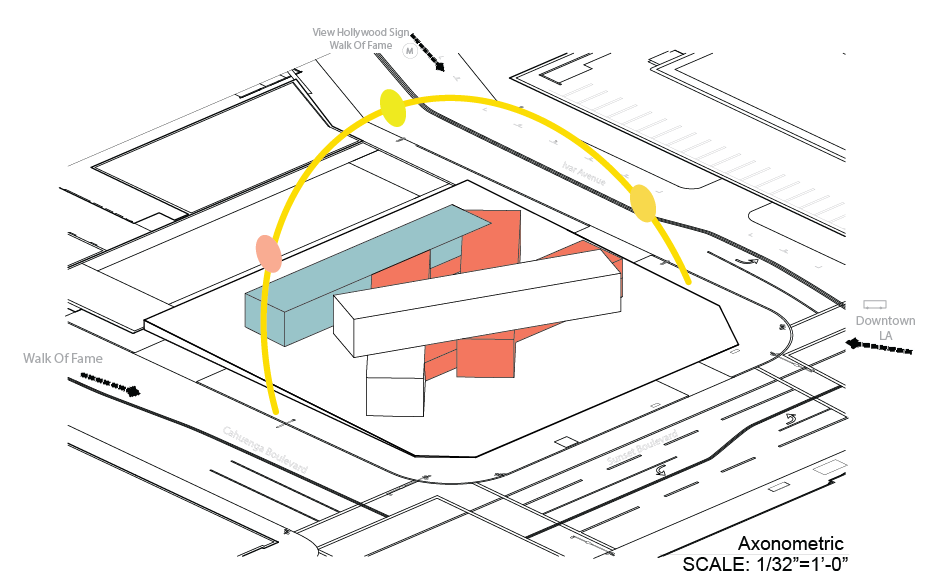

Sun Diagram

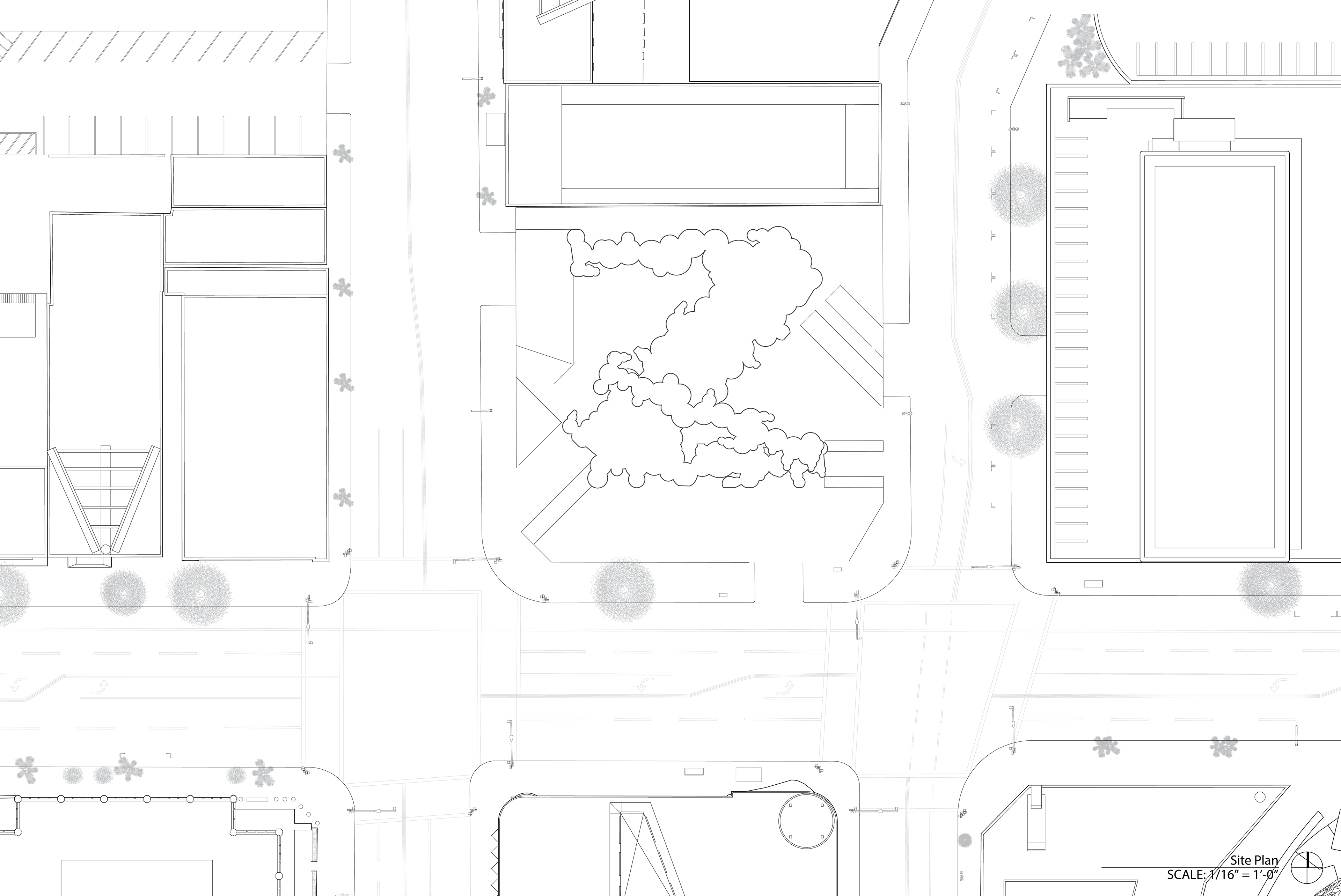

Site Plan

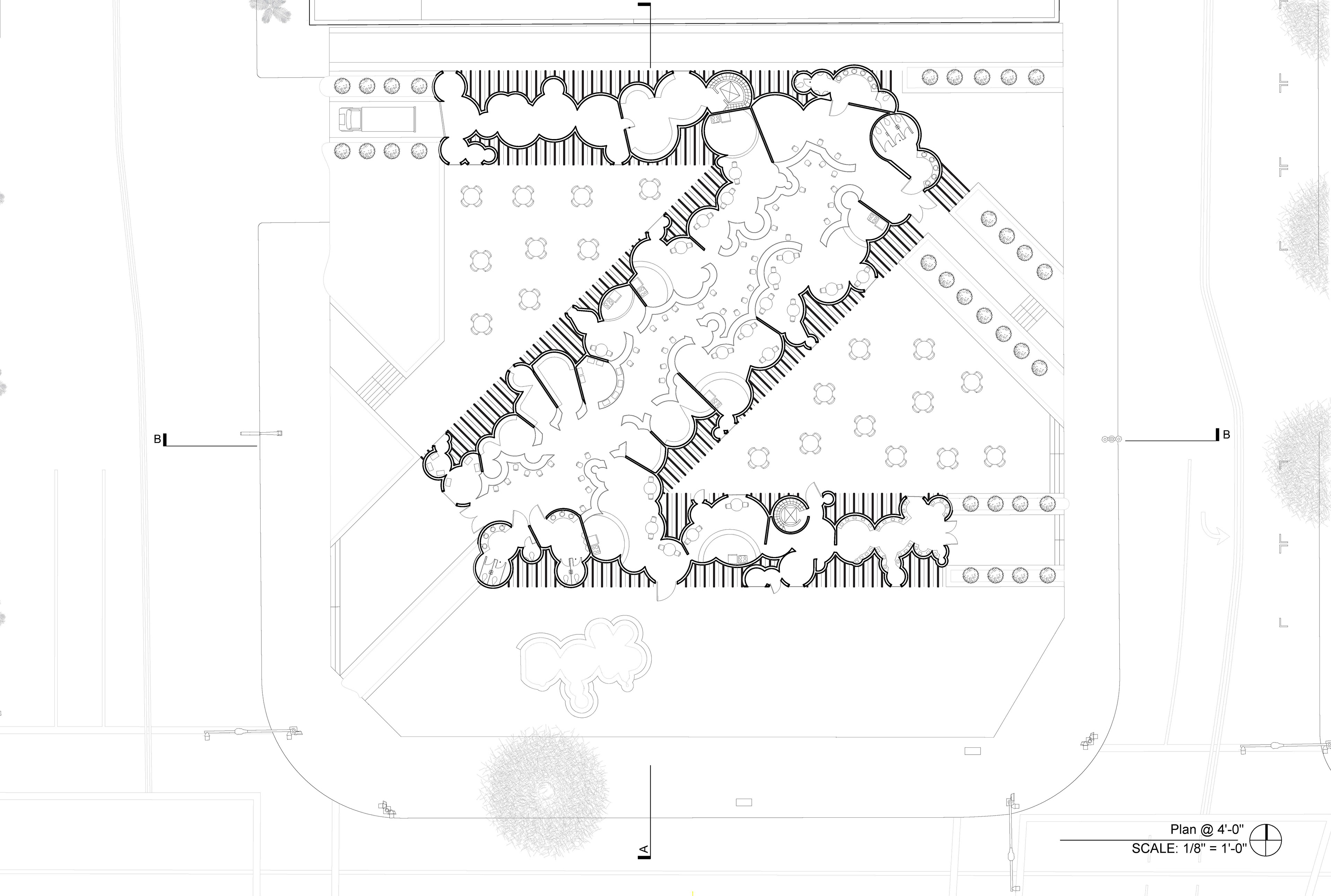

1st Floor Plan

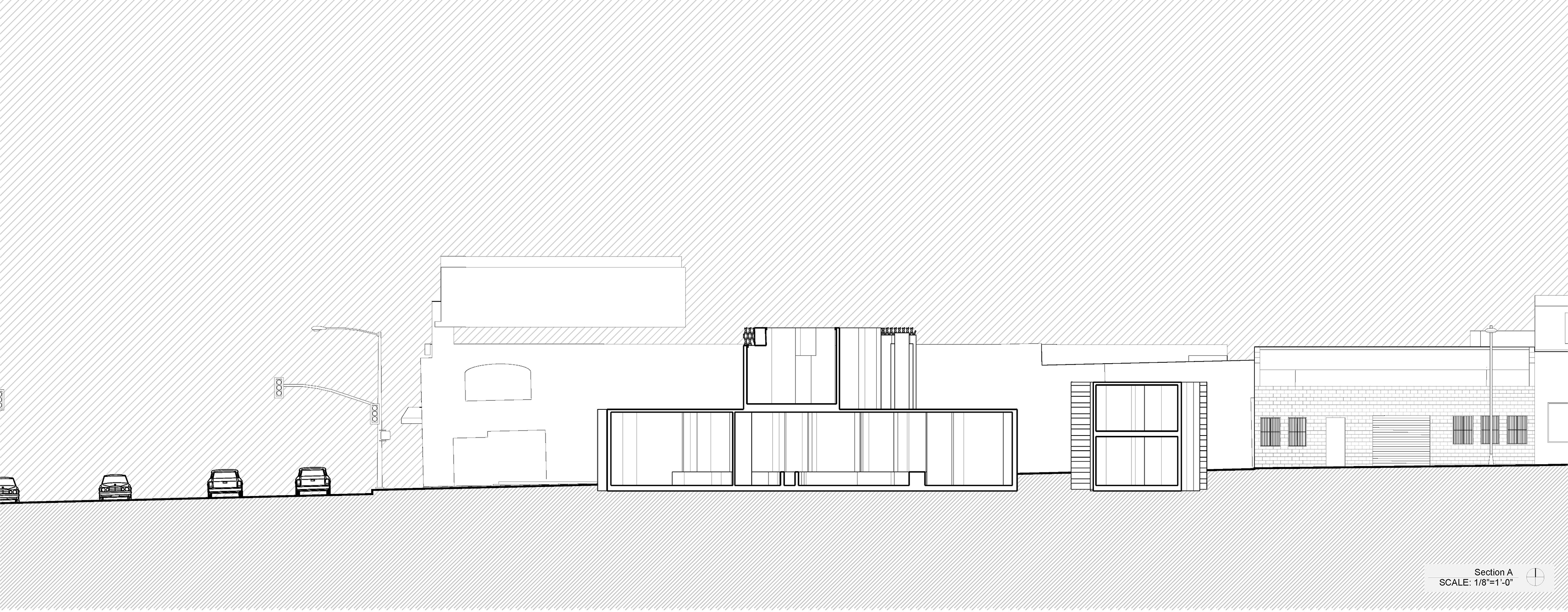

Section A

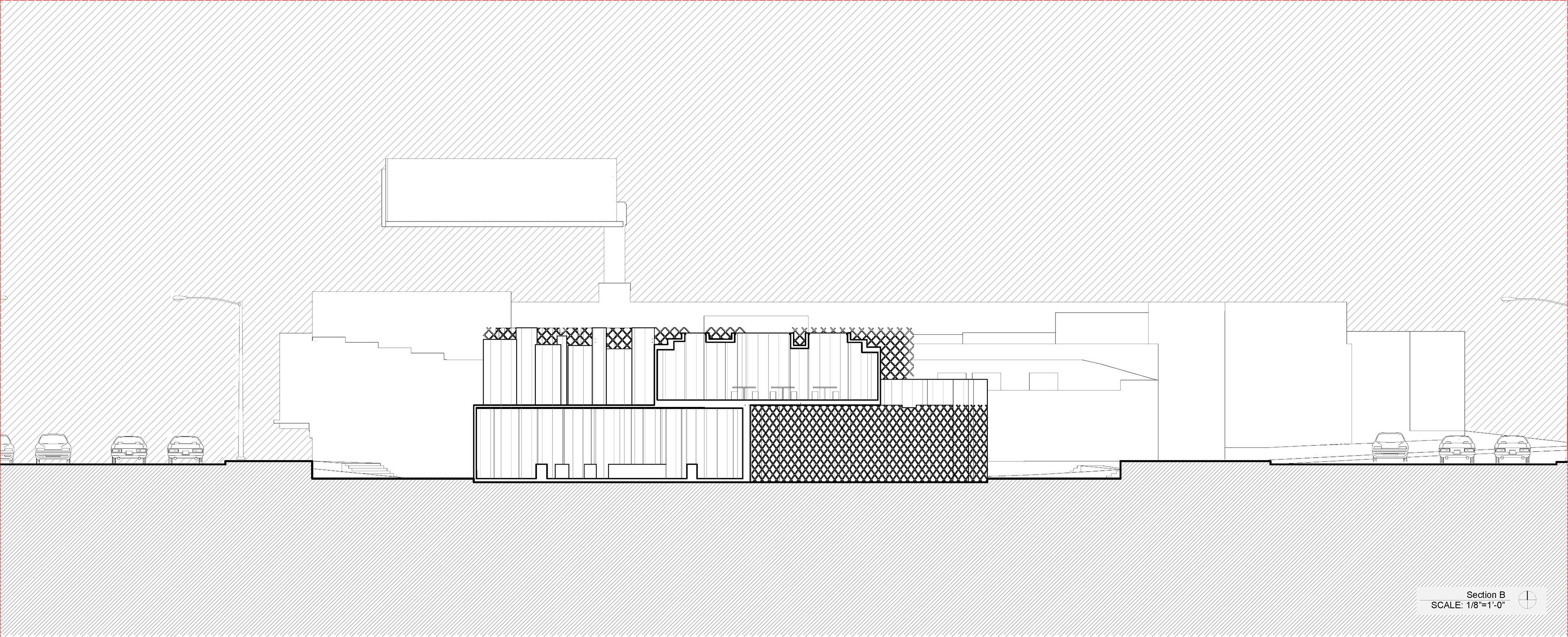

Section B

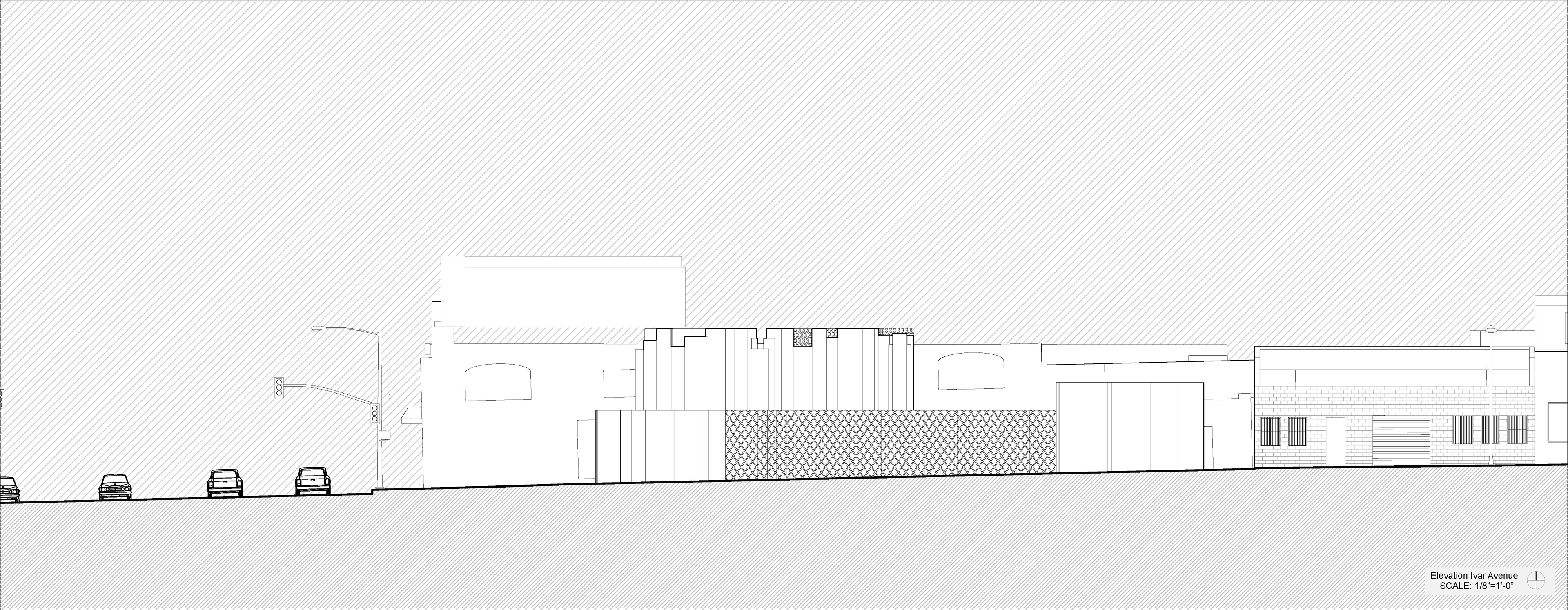

Elevation Ivar Avenue
